500L Dustproof Testing Machine Automotive Dust Test Chamber IP5X/IP6X
Complied Standards & Clauses
The sand and dust test chamber is designed and manufactured according to IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.
Product Overview
The SN441-500L Sand and Dust Test Chamber is engineered to simulate harsh desert-like environments, allowing manufacturers to evaluate the dust resistance and sealing performance of electrical appliances, automotive parts, and electronic equipment. Designed according to international testing standards including IEC60529 (IP5X/IP6X), IEC60598, and IEC60335, this chamber helps detect possible damage caused by airborne dust during product usage, storage, or transportation.
With precision airflow control, fine and coarse dust dispersion, adjustable vacuum settings, and a high-quality stainless-steel build, it delivers consistent and repeatable environmental testing conditions. Whether for R&D, quality control, or certification, this chamber ensures your products meet the highest dustproof standards.
Technical Parameters
| Item | Specification |
| Model | SN441-500L |
| Inner Chamber Size (W×D×H) | 800 × 800 × 800 mm |
| Outer Chamber Size (W×D×H) | 1250 × 1050 × 2000 mm |
| Dust Type | Fine dust ≤ 75 μm, Coarse dust ≤ 150 μm |
| Dust Concentration | 2 kg/m³ |
| Talcum Powder Dosage | 2–5 kg/m³ |
| Air Flow Velocity | ≤ 2 m/s |
| Dust Flow Direction | Top to bottom |
| Dust Baking Temperature | RT +10℃ ~ 60℃ |
| Negative Pressure Range | Adjustable from -10 kPa to 0 kPa |
| Air Flow Meter Range | 1–20 L/min |

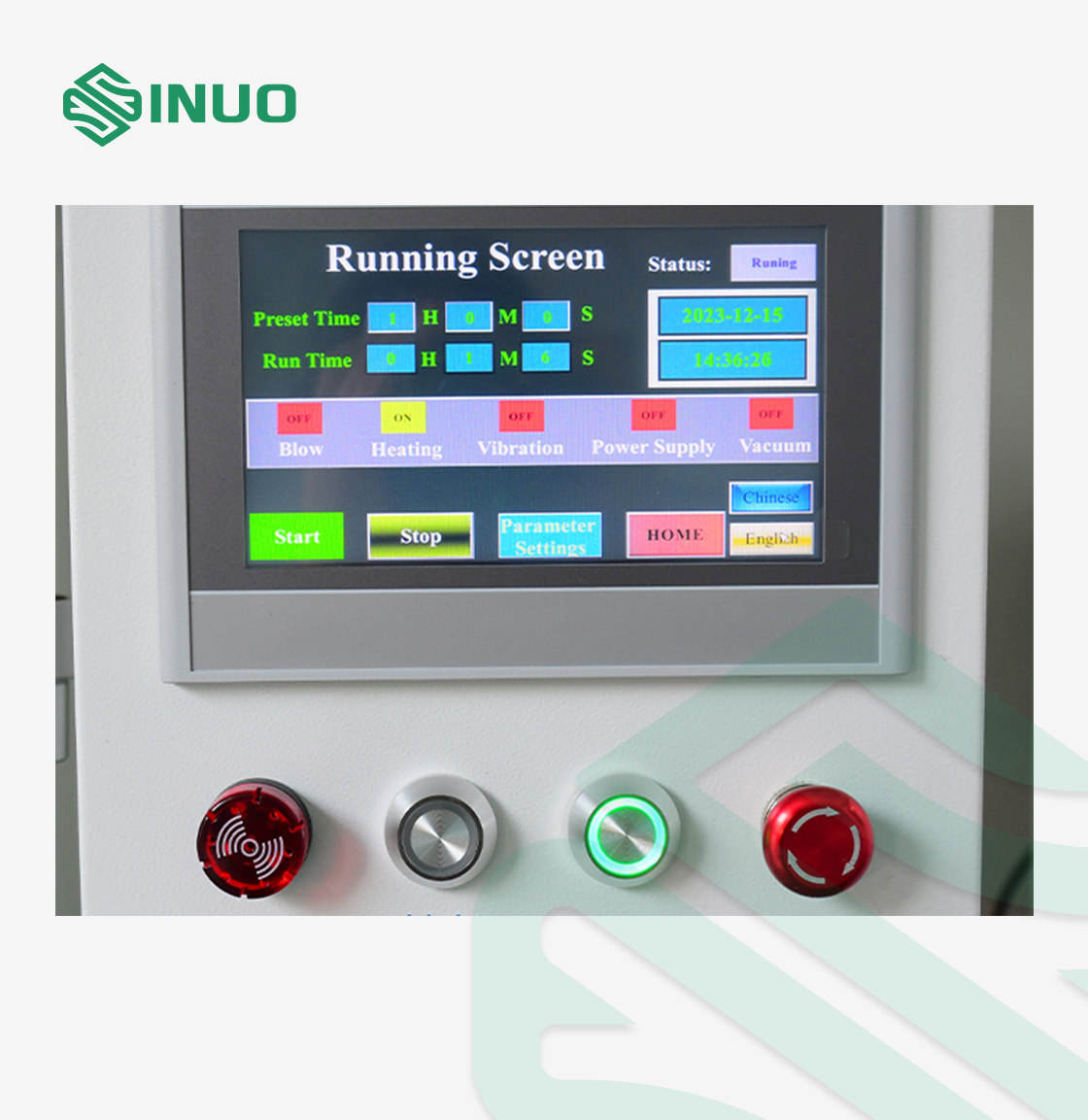

| Control System | PLC + Touchscreen (Teelong) |
| Test Time Settings | 1 s ~ 99 h (adjustable) |
| Cycle Time | 1 s ~ 99 h (adjustable) |
| Vacuum Time | 1 s ~ 99 h (adjustable) |
| Shock Time | 1 s ~ 99 h (adjustable) |
| Sample Load Capacity | 10 kg |
| Observation Window | 1 pc |
| Lighting | 1 pc |
| Dustproof Socket | AC220V 16A |

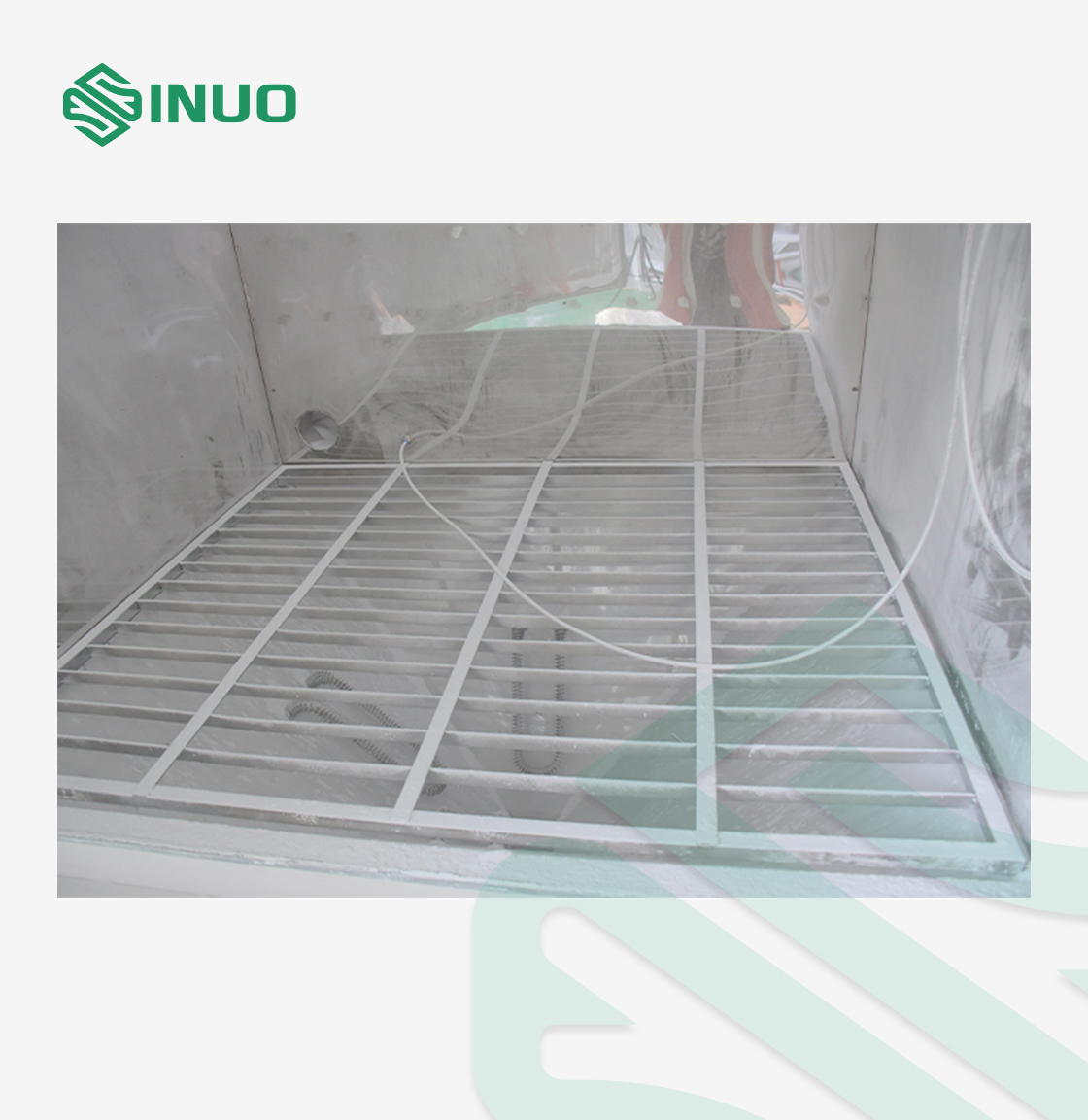

| Inner Chamber Material | SUS201 Stainless Steel Mirror Panel |
| Outer Chamber Material | Electrostatic Sprayed A3 Steel |
| Vacuum System | Pressure regulator, pump, nozzle, tubes |
| Heating System | Stainless steel mica heating sleeve |
| Power Supply | AC380V, 50Hz, 3-phase (32A air switch required) |
| Power Consumption | 3KW (no load) |
| Environment Conditions | Temp: 23±5℃, RH: 25–70%, Pressure: 86–106 kPa |
| Safety Protections | Phase protection, leakage, over-temperature |
