Compound Salt Spray Test Chamber Salt Fog and Humidity Test Machine 1m³

Brand Name : Sinuo

Model Number : SN8810C-1m³

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 30 sets/month

Delivery Time : 20 days

Packaging Details : Plywood Case

Nominal internal volume : 1m³

Inner box size : 1000×1000×1000 W×D×H

External space : 1600×2400×2000 W×D×H

Equipment weight : 500kg

Bearing capacity : 80KG

Maximum current : 23A

Machine power : 15KW

Temperature range : 20～70℃

Contact Now

Compound Salt Spray Test Chamber Salt Fog and Humidity Test Machine 1m³

Complied Standards & Clauses


It can meet the national standard ISO 16750-4: 2006 Road vehicles Environmental conditions and tests for electrical and electronic equipment Part 4: Climatic loads clause 5.5 salt spray test.

Equipment Overview


Corrosion of protected and unprotected metallic materials is influenced by many environmental factors, which mainly depend on the type of metallic material and the type of environment. It is impossible to design a laboratory accelerated corrosion test chamber that includes all environmental factors that affect corrosion resistance. Therefore, the laboratory test is designed by simulating the factors that play a major role in the corrosion of metallic materials. This equipment is designed to simulate and increase the effects of the environment on metallic materials exposed to an outdoor atmosphere that is contaminated with salt and can accelerate corrosion. The equipment includes a test method for cyclically exposing the sample to salt spray, dry, hot and humid environments. This equipment test is a comparative test, and the test results cannot predict the long-term results of the corrosion resistance of the same metal material used under this environmental condition. However, this method can still provide valuable information on the relative performance of materials exposed to salt pollution like the test conditions. Compared with traditional accelerated corrosion tests, such as neutral salt spray test (NSS), acetic acid salt spray test (AASS), and copper accelerated acetic acid salt spray test (CASS), the biggest advantage of this equipment test is that it can better Reproduces corrosion that occurs outdoors in salt-contaminated environments.
1.3 The equipment has temperature-humidity-heat alternating salt spray compound test chamber with temperature and humidity adjustment function is used to test various performance indicators and quality management of accessories under alternating compound conditions such as high temperature, humidity, dryness, and salt spray.

Technical Parameters

Product Name

Compound Salt Spray Test Chamber
Product modelSN8810C-1m³
Nominal internal volume

1m³
Note: Does not include the volume of the top sloping roof

Effective size of inner box (mm)

1000×1000×1000 W×D×H
Note: The height of the top slope is 600mm

External space (mm)About 1600×2400×2000 W×D×H
WeightAbout 500kg
Bearing capacityAbout 80KG

Temperature range of test chamber20～70℃ continuously adjustable
Temperature range of saturation tankRT+5℃～70℃
Range of humidity30%R.H～98%R.H (as shown in the figure)
Salt mist deposition amount

1～2ml/h/80cm2 (at least 16 hours of collection, take the average value)
Note: The monitoring point of the spray volume is located in the test area close to the surface of the sample

Spray pressure70～170Kpa
Spray methodThree modes of continuous spray, cycle spray and program spray can be adjusted by yourself
PH value of liquid medicineNeutral test 6.5～7.2 Acid test 3.0～3.3
4Test conditions

A. Commonly used alternating salt spray test conditions: ambient temperature of 35°C, saturated barrel temperature of 47°C, spray test time of 5% salt water concentration from 1min to 999h can be set arbitrarily, and then in the damp heat test at a temperature of 40°C±2°C, relative humidity 93%RH±3%RH, the test time can be set arbitrarily from 1min to 999h; the cycle can be set arbitrarily from 1 to 999 times. Then, let it stand for 1min to 999h under standard environmental conditions with a temperature of 23°C±2°C and a relative humidity of 50%RH±5%RH, which can be set arbitrarily.

B. Dry and wet compound salt spray test conditions: at an ambient temperature of 35°C, a saturated barrel temperature of 47°C, and a spray test time of 5% salt water concentration from 1min to 999h, which can be set arbitrarily; dry under the condition that the relative humidity is equal to or lower than 30%RH For the test, the test time can be set arbitrarily from 1min to 999h; in the humid and hot environment with a relative humidity greater than 95%RH, the test time can be set arbitrarily from 1min to 999h; then return to the first step of the salt spray test; the cycle can be set arbitrarily from 1 to 999 times.

C. NSS salt spray test, AASS acetic acid salt spray test, CASS copper accelerated acetic acid salt spray test, damp heat test, drying test, standard large climate environment test conditions or other combined test conditions can be carried out independently.

Details

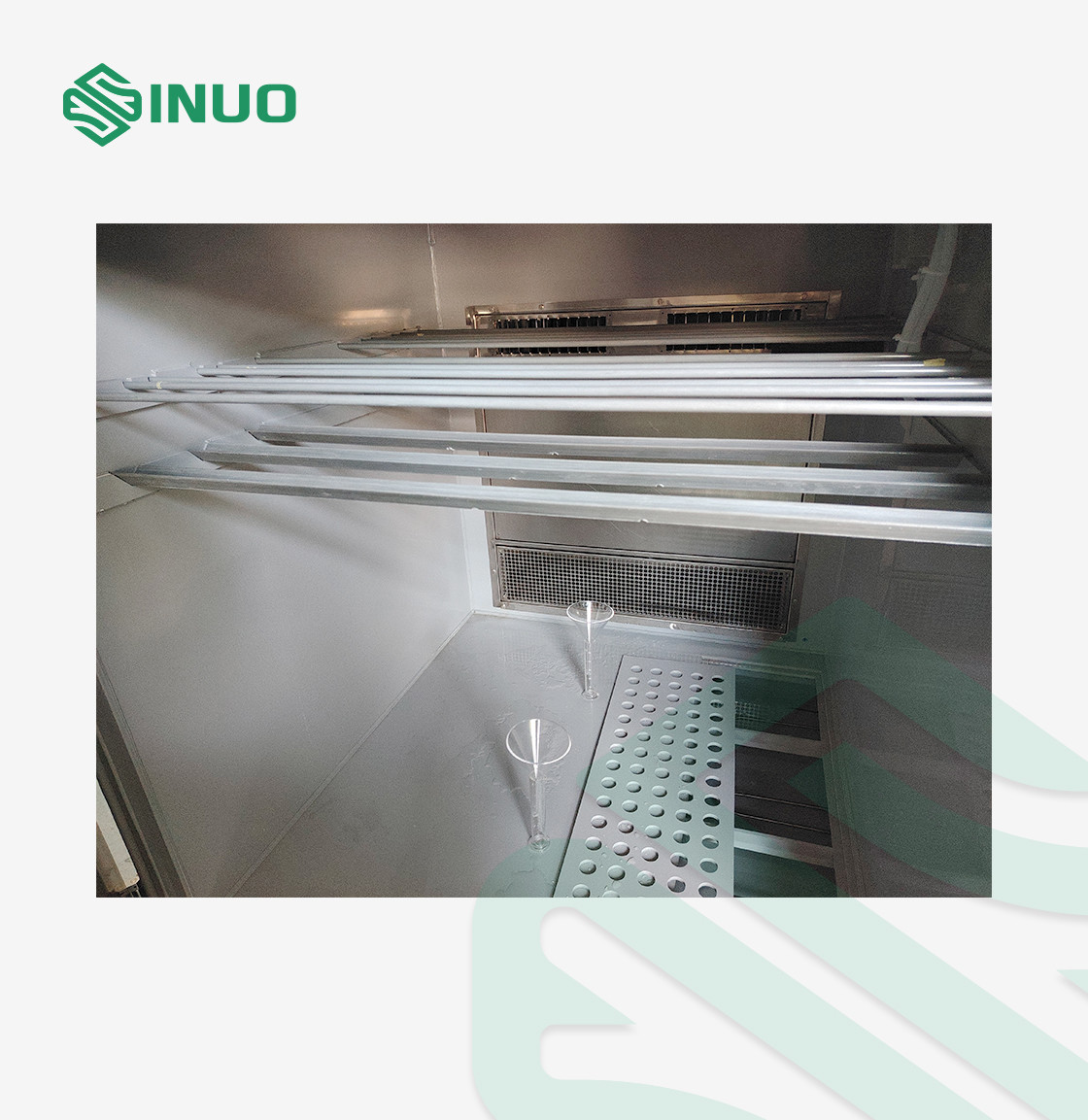

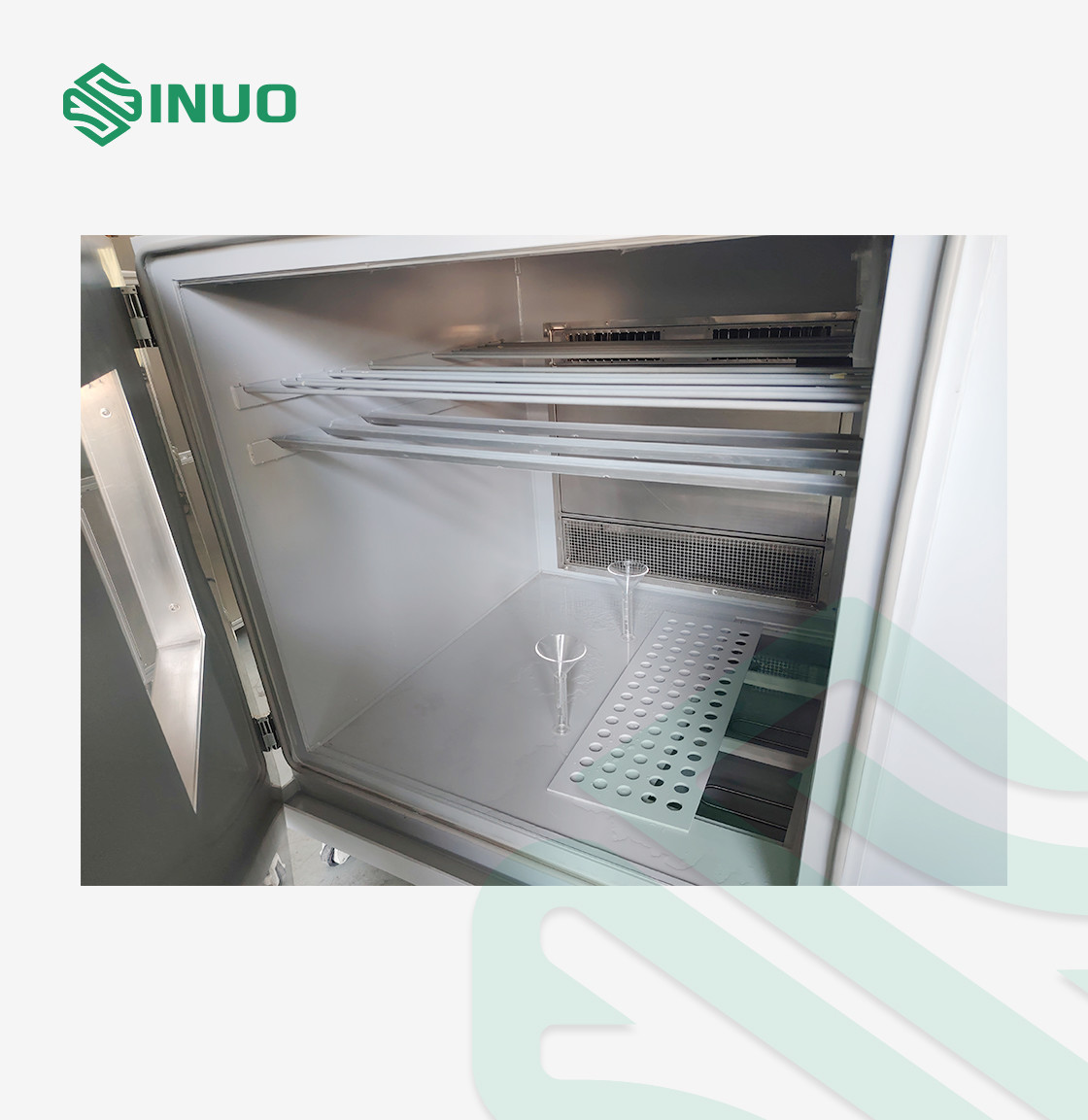

Compound Salt Spray Test Chamber Salt Fog and Humidity Test Machine 1m³Compound Salt Spray Test Chamber Salt Fog and Humidity Test Machine 1m³




Compound Salt Spray Test Chamber Salt Fog and Humidity Test Machine 1m³ Manufactures

Compound Salt Spray Test Chamber Salt Fog and Humidity Test Machine 1m³ Images
