IEC60950-1 2005 Pendulum Ball Impact Performance Test Device

Name: IEC609501 2005 Pendulum Ball Impact Performance Test Device
Brand: Sinuo
Price: 1 USD

IEC60950-1 2005 Pendulum Ball Impact Performance Test Device Manufactures

Brand Name : Sinuo

Model Number : SN2202

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Export packing

Lifting method : Electric

Working temperature : 0-40℃

Humidity : 30%-90%

Impact steel ball : Φ50.8mm, 535g steel ball

Drop height : 0.4-1.5m adjustable

Power supply : AC220V±10%/50-60Hz

Clamping method : Electromagnet attraction and release

Impact method : Vertical drop and swing shock, switchable

Contact Now

IEC60950-1:2005 Pendulum Ball Impact Performance Test Device

Complied Standards & Clauses

Conforms to IEC60950-1:2005 clause 4.2.5, IEC60598-1:2014 clause 4.13.4a, IEC60065:2005 clause 12.1.3 and figure 8.

Product Overview

Samples and restrictions: Information technology equipment, lighting fixtures.

Application: Conduct drop and impact performance tests on equipment casings.

Test principle: Free vertical drop or free swing impact specimen.

Structure and features: The equipment can perform vertical drop impact and swing horizontal impact.

Usage environment: Power supply: AC220V±10%/50-60Hz, working temperature 0-40℃, humidity 30%-90%;

Technical Parameters

Impact steel ball	Φ50.8mm, 535g steel ball
Impact method	Vertical drop and swing shock, switchable
Drop height	0.4-1.5m adjustable

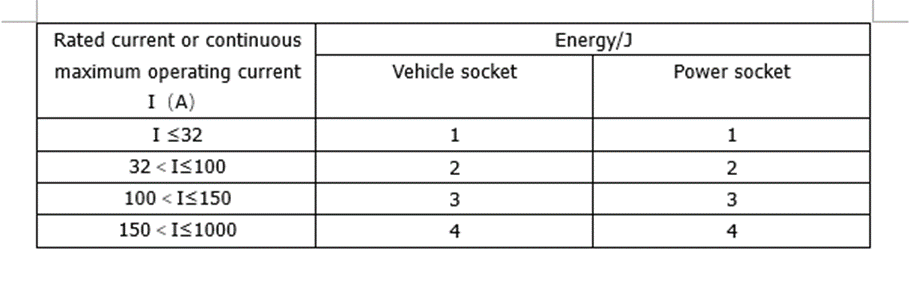

Impact energy	G=mgH can achieve the following table J or other required impact energy

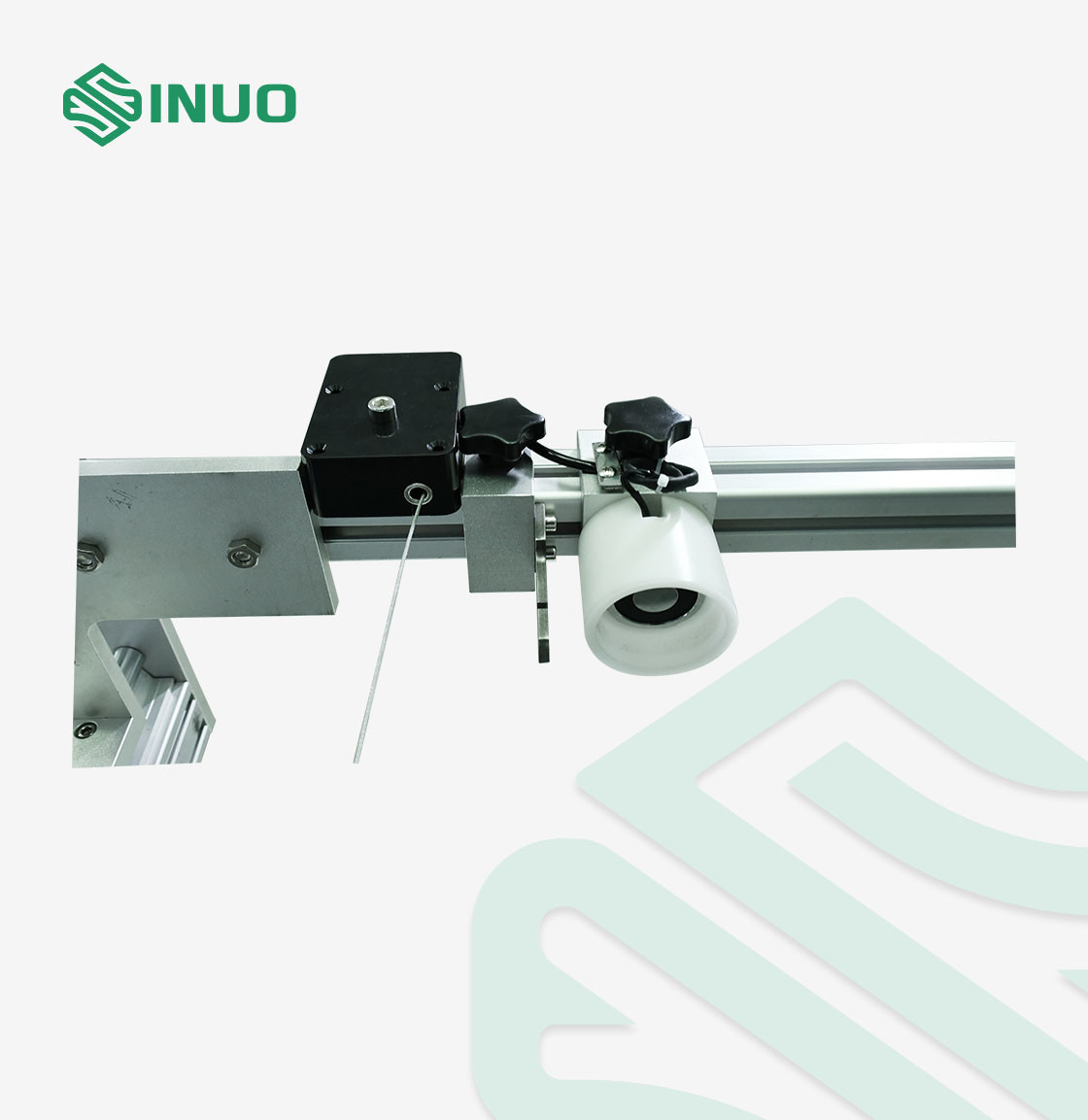

Lifting method	Electric

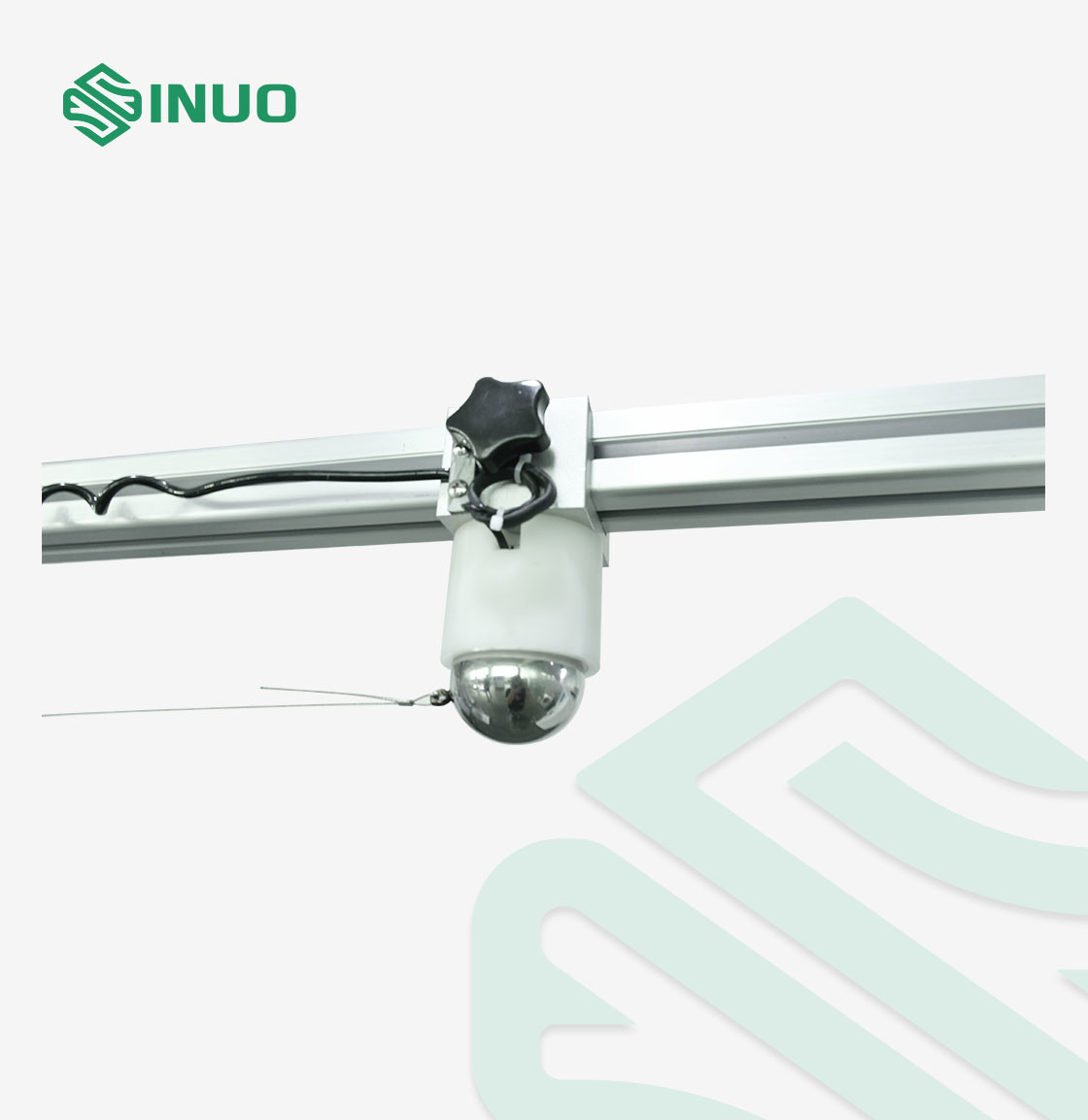

Clamping method	Electromagnet attraction and release

Details

IEC60950-1 2005 Pendulum Ball Impact Performance Test Device
