Charging Interface Breaking Capacity And Normal Operation Test Device

Name: Charging Interface Breaking Capacity And Normal Operation Test Device
Brand: Sinuo
Price: 1 USD

Charging Interface Breaking Capacity And Normal Operation Test Device Manufactures

Brand Name : Sinuo

Model Number : SNQC1005

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Export packing

Test stroke : 0-150mm

Breaking capacity switch-on time : 1-999.9s

Station : Single station

Test speed : 0-850mm/s

Test frequency : 0~999999 times

Plug and unplug rate : 0-10 times/min

Electrical control method : PLC intelligent integrated control

Operation mode : Manual or program-controlled operation

Contact Now

Charging Interface Breaking Capacity and Normal Operation Test Device

Complied Standards & Clauses

Conforms to IEC62196-1:2022.

Product Overview

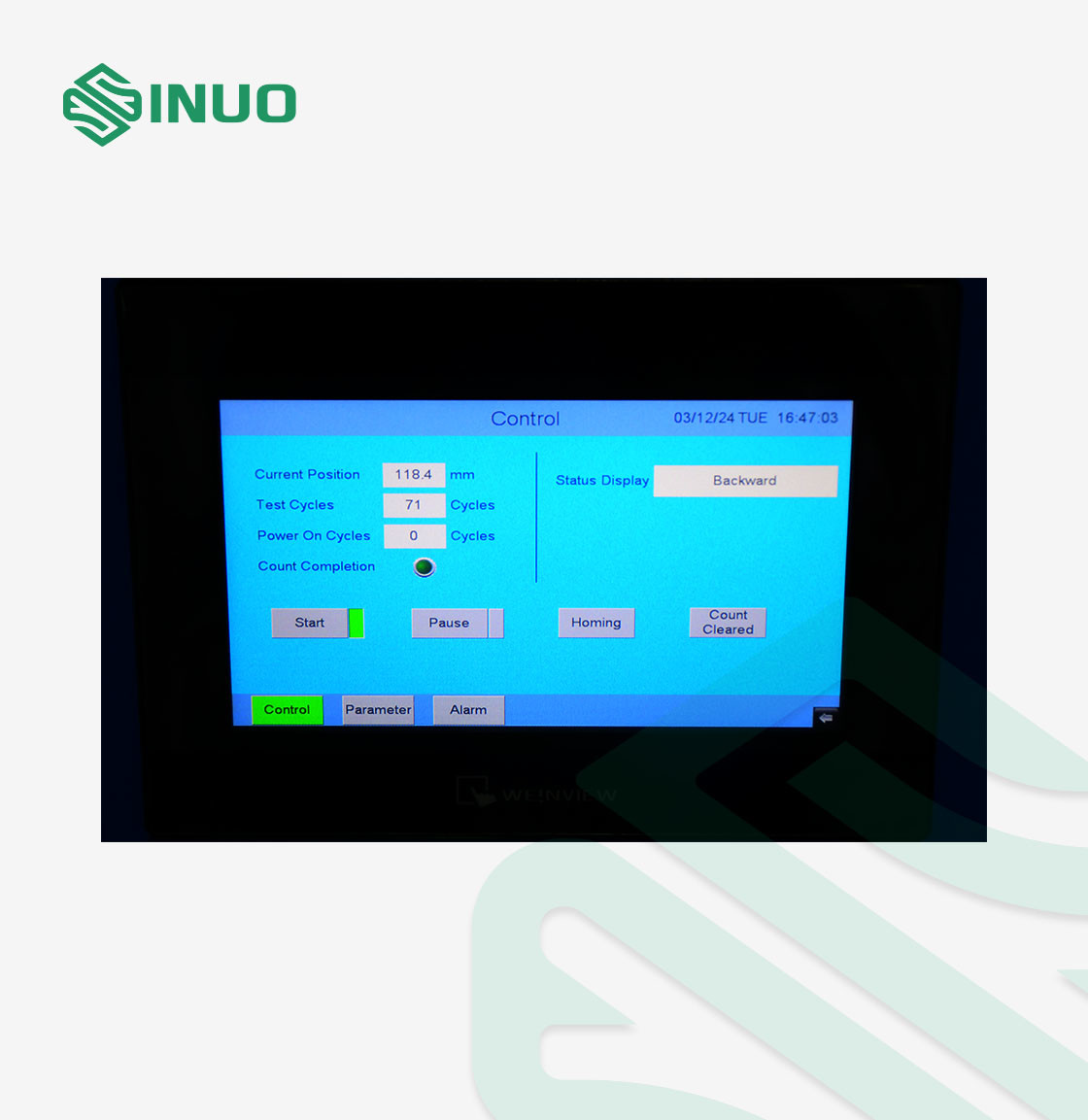

It is used to test whether electrical accessories such as electric vehicle charging interfaces, industrial plugs and sockets, and couplers can withstand the mechanical stress, electrical stress and thermal stress that occur during normal use without excessive wear or other harmful effects, with the purpose of verifying their reliability. It adopts an integrated frame, driven by a servo motor, precision ball screw and synchronous belt transmission, color touch screen operation and powerful digital display function, PLC intelligent control system. it also uses a three-axis adjustable clamp, suitable for charging gun interface life span test.

Technical Parameters

Automatic flip	Equipped with an automatic flipping mechanism at the charging gun clamp, which can be flipped 90º, and the flip holding time can be set arbitrarily within the range (0 ~ 600) s
Test frequency	0~999999 times, can be preset, automatically stops when the count reaches the set value
Breaking capacity switch-on time	1-999.9s, can be preset (the standard requires that electrical contact should be maintained for no more than 4s and no less than 2s)
Plug and unplug rate	0-10 times/min, can be preset (3.75 cycles/min, 7.5 strokes/min)
Test stroke	0-150mm, can be preset (the distance between the test plug and the test socket is ≥50mm)
Test speed	0-850mm/s can be preset directly on the touch screen
Force value display	Equipped with a 50kg range force sensor, which can monitor the force value in real time, form a force-time curve, display the maximum insertion force and extraction force, and display the current force value, force value range (0 ~ 500) N, and indication error. ≤±0.5%F.S., resolution≤0.1N
Locking device	It has the function of automatically pressing the mechanical locking device to simulate normal operating conditions.
Solution tank box	Equipped with three test liquid tanks, which can accommodate GB/T20234.1-2023 Table 10 acid rain simulated solution, Table 11 salt water simulated solution, and Table 13 turbid water simulated solution.
Immersion requirements	The number of soaking liquids, soaking time, drying time, plug-in and unplug times, and cycle times can be set
Load	External
Detection function	When the load is connected, it can realize circuit break alarm and record the current times.
Safety protection	Ground protection, short circuit protection, overload protection
