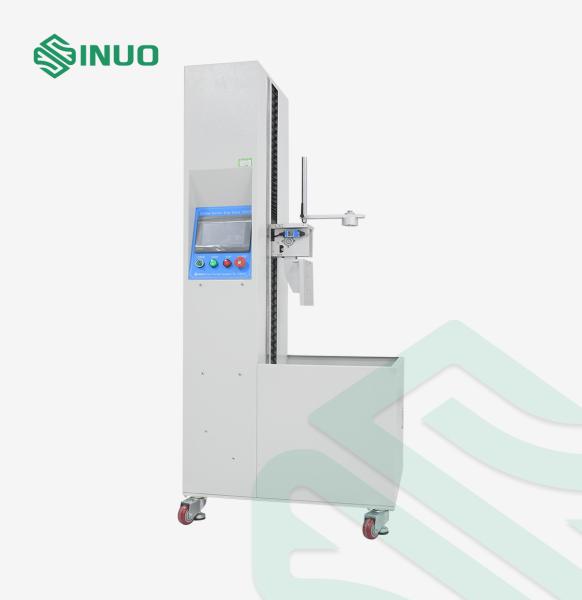

Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height

Brand Name : Sinuo

Model Number : SN5510

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Export packing

Ambient temperature : 5～40°C

Control system : PLC Control

Test station : Single station

Drive mode : Stepper motor

Power supply : AC220V±10%/50Hz

Lifting speed 0 : 0～3mm/s, can be preset

Drop height : 30～1500mm, can be preset

Operation interface : 7-inch color LCD touch screen

Contact Now

Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height

Complied Standards & Clauses

Conforms to UL 1642, etc.

Product Overview

Application: This test equipment is used to test the drop strength and safety requirements of batteries.

Structure and features:

1.This machine available for package face, corner, edge free drop testing.

2.With height digital display instrument and tracing height with encoder, so can measure the precision drop height.

3.The drop height tolerance within2% or 10mm;

4.Adopt pneumatic structure, fix the specimen with special fixture (range adjustable), push the drop button, pneumatic cylinder open, specimen free dropping. The drop height controllable, and with height steel ruler which makes drop height available. Various kinds drop floor optional. Meets different testing standards.

Technical Parameters

Item Parameters
Power supply AC220V±10%/50Hz
Test station Single station
Operation interface 7-inch color LCD touch screen
Drive mode Stepper motor
Control system PLC Control
Drop height 30～1500mm, can be preset
Lifting speed 0～3mm/s, can be preset
Test environment Ambient temperature 5～40°C; relative humidity (20～90)%RH. Use place: no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation

Details

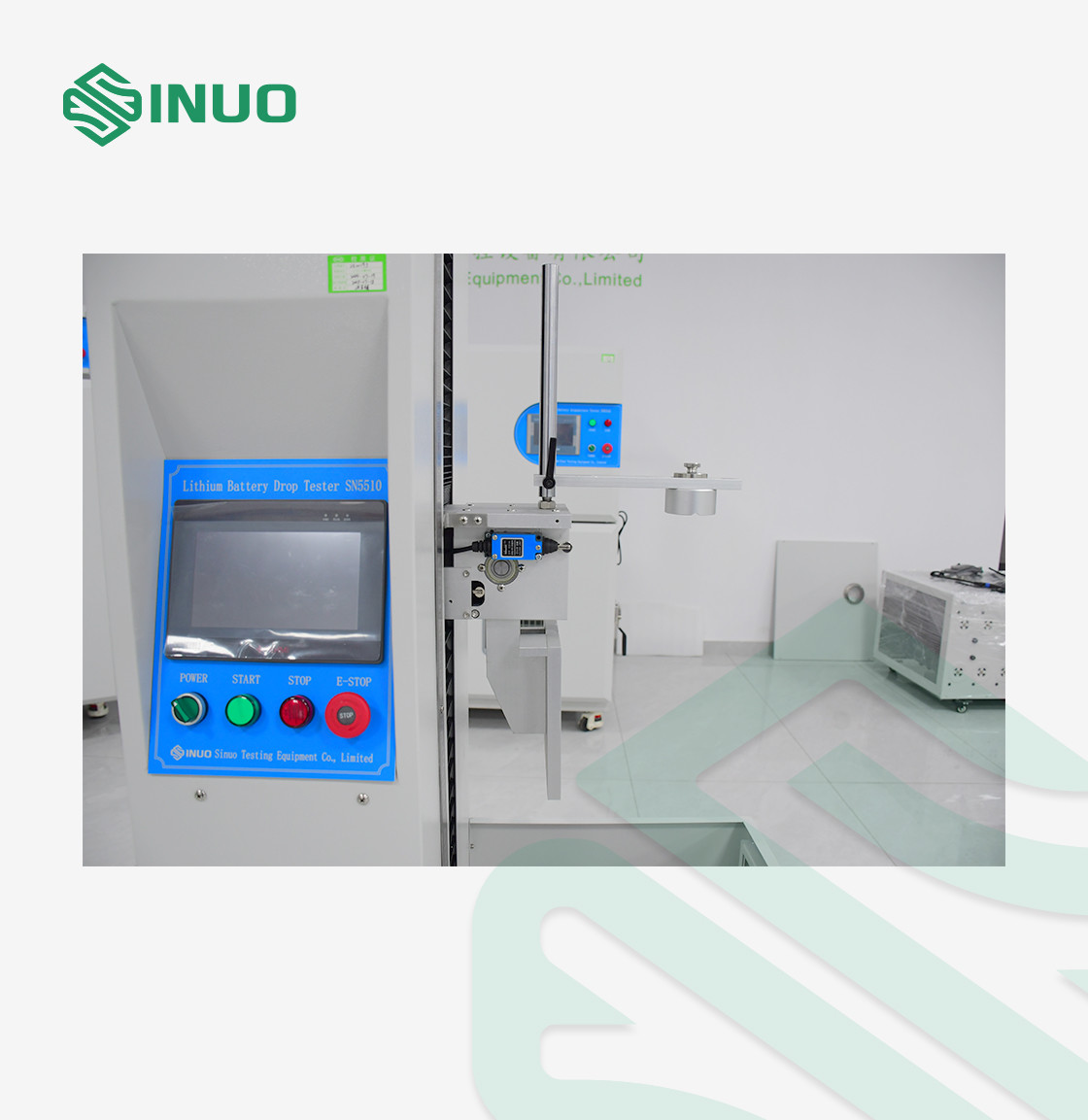

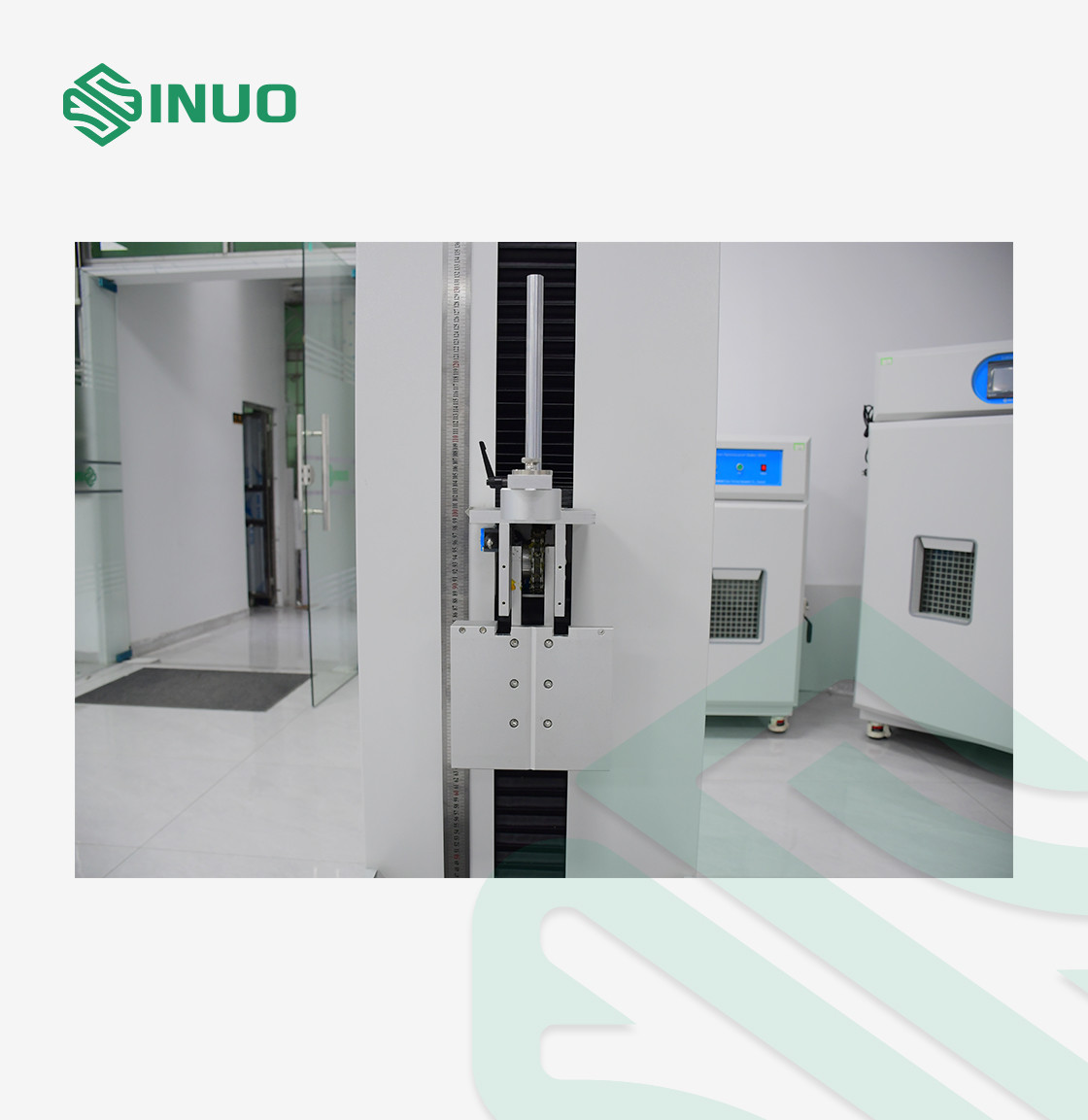

Lithium Battery Drop Tester For Battery Drop Strength Test Drop HeightLithium Battery Drop Tester For Battery Drop Strength Test Drop Height
